Noise Modelling of Reflections and Façade Corrections

By Sean Graham, WKC Group

Sound we hear all around us comes at us from all directions. Much of the sound we hear may not actually be visible but may have been reflected off structures and buildings or any surface that is hard and rigid. When a sound engineer has a task of building a noise model containing sources such as vehicle movements on road surfaces or sources related to industrial equipment, they may need to take reflections into account.

Depending on the type of noise source to be modelled, there are different standards and guidelines that a noise model should adhere to. The Calculation of Road Traffic Noise (CRTN) is used widely in the UK to assess road traffic noise, whereas ISO 9613-2 specifies an engineering method for calculating the attenuation of sound propagation outdoors for industrial sources.

Here we look at what each standard says about reflections and how an engineer may replicate this in a noise modelling software such as SoundPLAN.

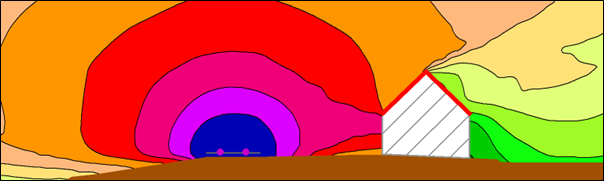

SoundPLAN Cross Section Map ViewSoundPLAN Cross Section Map View

CRTN

CRTN allows for reflections of noise from hard and rigid surfaces that are adjacent to or in the neighbourhood of the receiver point, but not from the building that the receiver point is on. This is because CRTN also applies a façade correction of 2.5 dB(A) when the receiver point is located 1 m in front of the building façade. Therefore, the reflection from the façade surface next to the receiver point is accounted for by the façade correction.

There can be confusion in the difference between a reflection and a façade correction, as they are not strictly the same thing in terms of noise modelling. A façade correction is a single applied correction for a receiver that is 1 m in front of that façade. A façade correction is only applied if the standard being used stipulates it. In this case, CRTN does allow for façade corrections.

When attaching a receiver to a building using the CRTN methodology, SoundPLAN will assume the receiver point is 1 m from the façade and a façade correction of 2.5 dB(A) will be applied. (note in SoundPLAN, the attached receiver will be green in colour). Failure to attach a receiver to a building will mean that no façade corrections or reflections from that building will be calculated for that receiver.

ISO 9613-2

ISO 9613-2 is different, in that it does not mention façade corrections, so this part is at least ignored. The reflections from the façade that the receiver point is on can be considered depending on the settings you select in SoundPLAN.

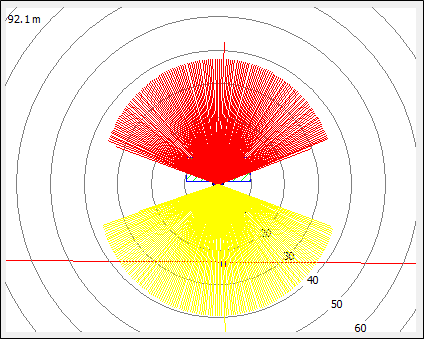

ISO 9613-2Yellow lines = Direct Noise
Red Lines = Reflective Noise

To account for reflections, the reflection order must be at least greater or equal to 1. The reflection order is the number of times a sound ray is allowed to reflect off any object in the model before the model ignores it. If this is set at 0, it does not matter what other settings are adjusted, there will be no reflections considered. Luckily though, by default, it is set at 3.

Reflection Order Settings in SoundPLANReflection Order Settings in SoundPLAN

Attaching a receiver to a façade (denoted green in colour as opposed to yellow) will not give any reflections from the building it is attached to, and because ISO 9613-2 does not mention façade corrections, there will be no correction for this. To get around this, the engineer could leave the receiver un-attached (yellow receiver), however, it is useful to attach receivers to buildings (for example to determine noise levels at bedroom windows). Therefore, if attached receivers to buildings are desired and reflections from its own façade is also desired, then the following option should be turned on.

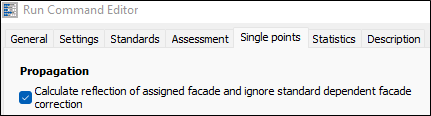

Propagation Settings in SoundPLANPropagation Settings in SoundPLAN

This will force SoundPLAN to calculate the reflection from the façade for assigned receivers.

Reflections from the façade in front of un-attached receivers will be accounted for (unless you have the reflection order set at 0) so there is no need to adjust the the Propagation settings for these receivers.

Summary

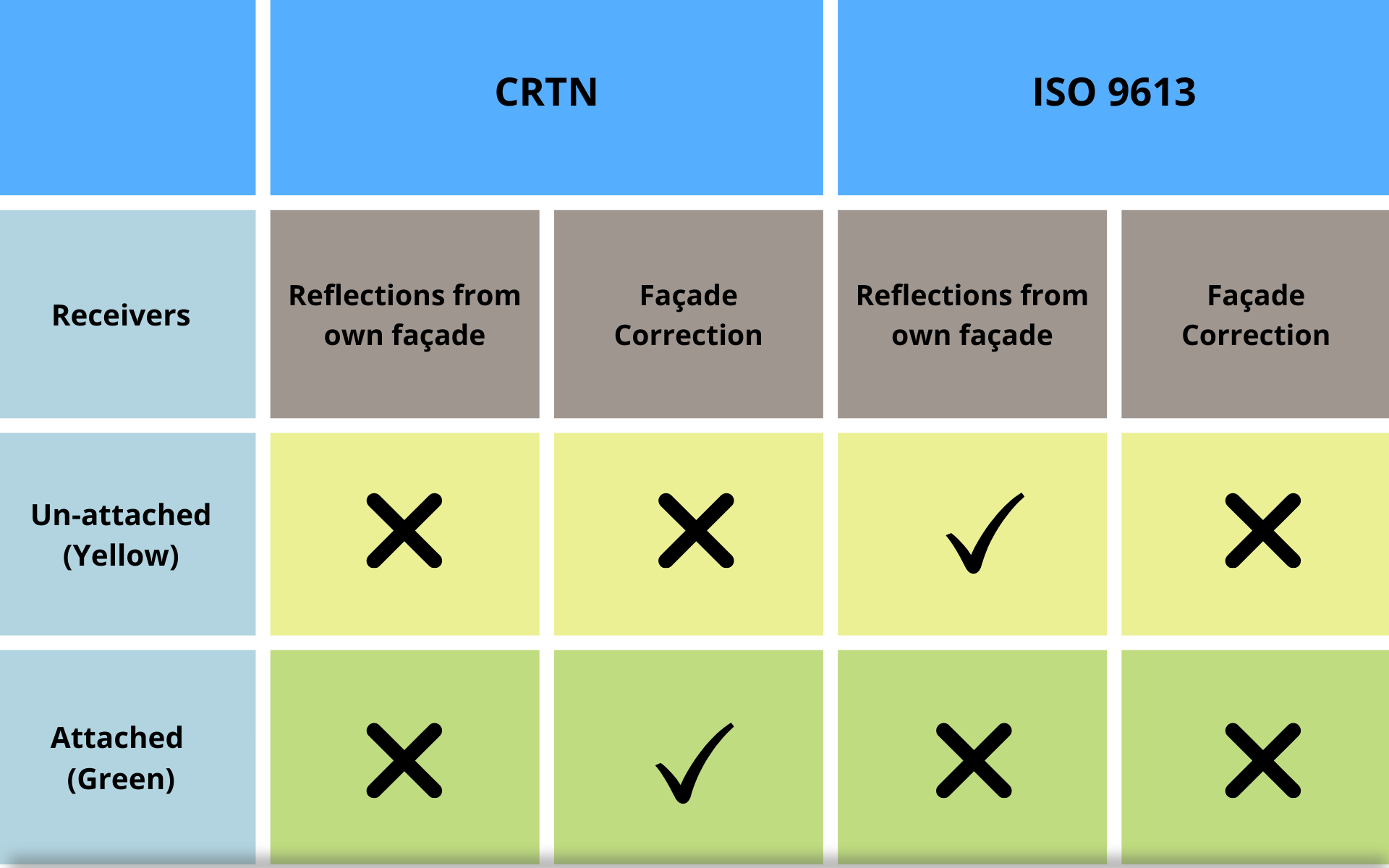

To summarise, the below table displays the receiver situations for both CRTN and ISO 9613-2 in which reflections from its own façade and façade corrections are being applied in SoundPLAN.

Article Summary Infographic
